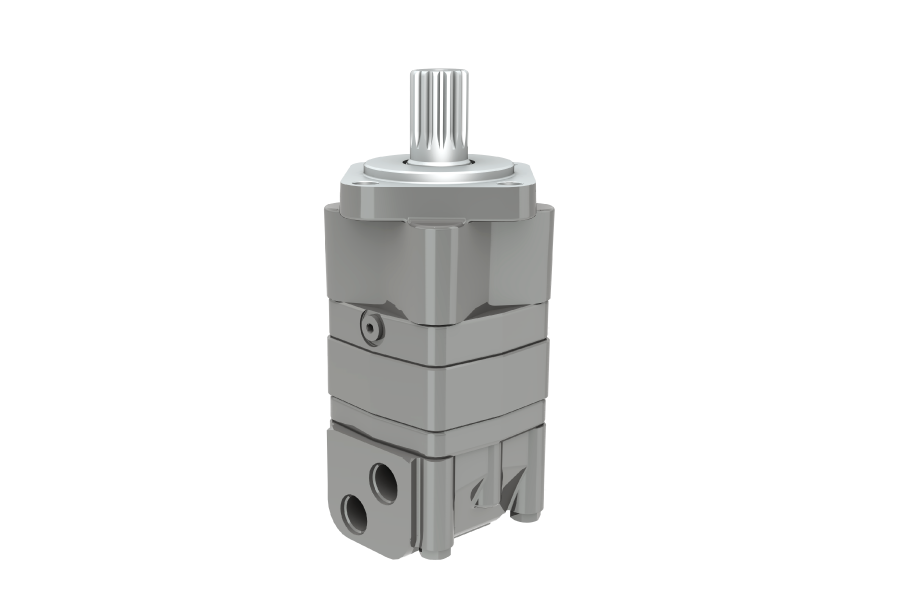

Displacement: 80-500 cc/rev
Max.differential pressure: 120-225 bar
?Using tapered roller bearing structure, can support larger axial and radial load.
?
Advanced disc valve structure, high distribution accuracy, strong
automatic compensation ability after wear, to ensure high volumetric
efficiency, long life, efficient and stable work.
?Various displacements and installation dimensions are available.
?Optional relief valve, speed sensor
| Type | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 315 | 400 | 500 | |
| Displacement (cm3/rev.) | 80.2 | 99.6 | 124.9 | 159.2 | 199.4 | 232.1 | 249.3 | 314.0 | 391.9 | 488.3 | |
| Max.speed (rpm) | Continuous | 773 | 739 | 592 | 465 | 372 | 318 | 298 | 236 | 188 | 153 |
| Intermittent | 982 | 892 | 714 | 562 | 447 | 385 | 359 | 284 | 229 | 187 | |
| Max.torque (Nm) | Continuous | 241 | 297 | 370 | 473 | 610 | 658 | 760 | 874 | 897 | 847 |
| Intermittent | 316 | 390 | 485 | 580 | 727 | 812 | 855 | 987 | 1056 | 986 | |
| Max.output (kW) | Continuous | 15.5 | 18.0 | 18.0 | 16.5 | 16.5 | 13.8 | 14.5 | 15.0 | 11.0 | 9 |
| Intermittent | 19.5 | 22.5 | 22.5 | 23.0 | 22.0 | 17.2 | 18.0 | 17.0 | 12.5 | 10.5 | |
| Max. differential pressure (bar) | Continuous | 225 | 225 | 225 | 225 | 225 | 225 | 225 | 225 | 175 | 120 |
| Intermittent | 275 | 275 | 275 | 260 | 250 | 250 | 250 | 240 | 190 | 140 | |
| Peak | 295 | 295 | 295 | 280 | 270 | 270 | 270 | 260 | 210 | 160 | |
| Max.flow (L/min) | Continuous | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| Intermittent | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max.no-load starting pressure (bar) | 12 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Min.starting torque (Nm) | Max.continuous differential pressure | 145 | 215 | 283 | 359 | 460 | 530 | 554 | 734 | 796 | 781 |
| Max.Intermittent differential pressure | 188 | 281 | 371 | 440 | 557 | 633 | 697 | 858 | 925 | 925 | |
| Weight(Standard/Wheel) (kg) | 11.7 | 11.9 | 12.1 | 12.5 | 12.9 | 13.3 | 13.5 | 14.2 | 15 | 15 | |
